Amplifier Canadian C 19* (experimental)
and Amplifier Canadian No.19
Year 1942

In mid 1942 the Canadian Military Headquarters specified the design of a linear RF amplifier for use with Wireless Set No.19, based on a design by the army Engineering Design Branch (AEDB) of the development Group of Directorate of Signal Design. In June 1942, an order for 25 units was placed at Canadian Marcony Company, with a further 12 units to be made at the Canadian Signals Establishment. The next year (1943) 25 Amplifiers C19* (experimental) were dispatched to the Canadian Army Overseas in England for user tials. Although the required ranges were obtained during field tests, it was found that spurious radiation and harmonic interference was experienced. As this was not acceptable , it was decided that in the meantime the Canadian Army Overseas would equip itself with the British Amplifier RF No.2 A later-produced filter unit known as “Gremlin Box” , connected between the the No.19 Set and Amplifier C19* (experimental) was reported to cure the problems of spurious radiation. In March 1943 a further order for 450 units was placed on Rogers Majestic Limited. It was not until 1944 that the redesigned RF amplifier, now designated Amplifier Canadian No.19, and associated Vibrator Power Unit for use with either Wireless Set No.19 or No.22 was introduced. In contrast with the amplifier C19* (experimental) it contained a selective internal filter which suppressed spurious RF signals entering the amplifier.The Amplifier Canadian No.19 Amplifier Unit was manufactured by Rogers Majestic and the Vibrator Power Unit was made by Electronic Laboratories of Canada Ltd. The units were very similar in apparence to the Amplifier C19* (experimental) with only slight difference in the layout of the front panel. In 1944 field trials were undertaken to compare the Amplifier Canadian No.19 with the British RF Amplifier No.2 The report revealed that the Amplifier Canadian No.19 was well designed, soundly constructed and should prove reliable in moderate temperature climates. Under all conditions of use, the Canadian equipment gave signals one to two R strengths better than those from the British amplifier at a given range. The report concluded that the Canadian Amplifier was of more elaborate design and finish, had ruggedness in every feature, but the drain on the batteries was found mush more than imposed by the lower powered British RF Amplifier No.2. A second disadvantage was that due to the size and weight, the Canadian equipment was not very suitable to be removed from a vehicle for operation as a ground station. The amplifier was not made in large quantities, (it is beived that 500 units were produced) partly due to the imminent end of World War II and (quoting a letter from HQ 1st Canadian Army to CMHQ dated April1945) At this time it is thought that field formations now have no requirements for the Amplifier Canadian No.19 . Since the conception 3 years ago, the standards of field wireless equipment have risen. It is unfortunate but true that the period between conception and production in satisfactory form has been so lengthy that this equipment has become available too late to be of any use... But in February of that year it was already decided that the Canadian Army Overseas had no use for it and were to dispose of the units which were held in the UK.
From Wireless for the Warrior – Volume 2 by Louis Meulstee

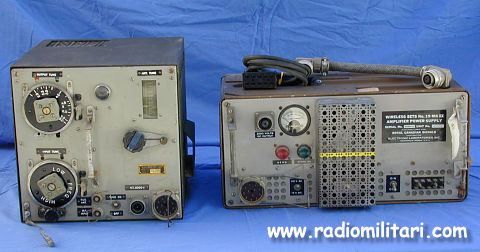

The Amplifier in my collection is an Amp. No.19 * (experimental) Serial n. C 19 and the Vibrator Power Supply manifactured by Electronic Laboratories Inc. Indianapolis, Indiana Serial 62x.






  Amplifier Canadian C 19* (experimental)

.
Frequency coverage: 2.0 – 8.0 mc.
Type of signals:
AM R/T, MCW and CW
Tubes Amplifier:
1 x 813, 1 x 6N7, 1 x 6J5, 1 x 12H6
Vibrator Power Unit:
1 x CK1007, 2 x RK60, 1 x CK1006 Power supply: 12V DC 115 V AC
Dimensions Amplifier Unit:
12 ¾ x 11 x 17 ½ inch.
Weight Amplifier Unit: 47 lb Dimension Power Unit:
17 ½ x 8 ½ x 12 inch. Weight Vibrator Power Unit: 77 lb
