Radio Receiver UKw.E.e Telefunken
Year 1936

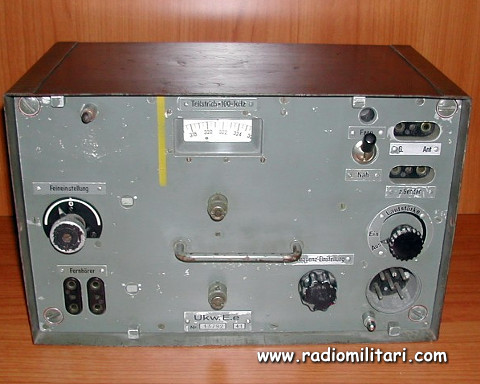

The radio receiver UKw.E.e is a superheterodyne Ultra Short Wave radio used in many vheicles. Sd.Kfz.101, Sd.Kfz.141, Sd.Kfz.141/1, Sd.Kfz.141/2, Sd.Kfz.142, 10.5 cm K18 auf Panzer-Selbstfahrlafette, Kugelblitz, Wirbelwind, Flakpanzer IV, Sd.Kfz.171, Sd.Kfz.267, Sd.Kfz269, Sd.Kfz.173, Sd.Skf.173/1, Sd.Kfz.181, Sd.Skf.267/268, Sd.Sfk.166, Sd.Sfk.166/1, Sd.Sfk.184, Sd.Sfk.25173. Yellow marked equipment = “Gelbstrich”-Gerate: intended for intercom modification.






  Radio Receiver UKw.E.e Telefunken

.
 Frequency Coverage:  27,2 – 33,3 MHz
IF: 3 MHz
Signals: AM voice - cw
Tubes: 7 x RV12P4000
Dimensions: 20Height x 17Depth x 31.5Width cm.
Weight: 10.8 Kg
Power supply: Dynamotor 12V E.U.a, E.U.a1-2-3-4
Manual: D 988/2



Radio Receiver UKw.E.e Telefunken
