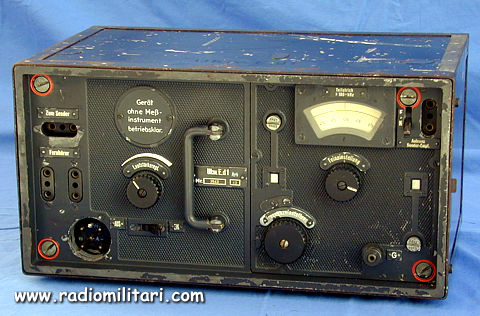

Radio Receiver Ukw.E.d1
Manufactured by LORENZ
Year 1936

Aircraft The Radio Receiver Ukw.E. d1 is a nine tube heterodyne with H-F oscillator, mixer, three I-F stages, 2nd detector, AVG and audio stage. The I-F transformers consist of inductively tuned, capacity-coupled coils in an extemely small container. Used in air-ground liaison for artillery units and armored division. Associate transmitter 20W.S.d.







Ukw.E.d1

.
Frequency coverage: 42.2 – 47.8 MHz
Preset Frequencies: 2 adjustable flicks-frequency position
Type of signals: tone and voice
Tubes: 9 x RV12 P 2000
Power Supply: Dynamotors EUa, EUa1, EUa2 or 130v “B” Batteries and 12 v storage battery
Manual: D 976/5
