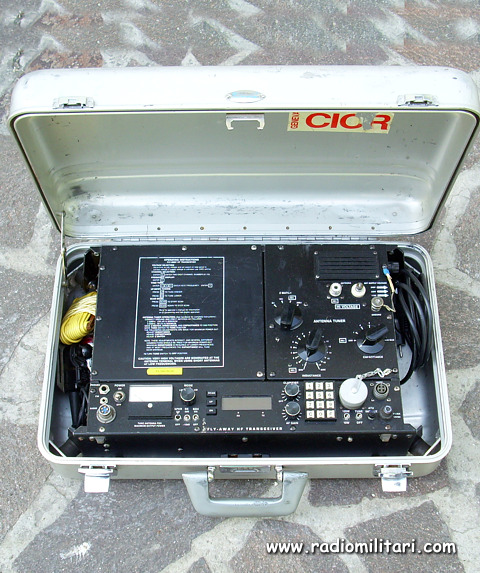

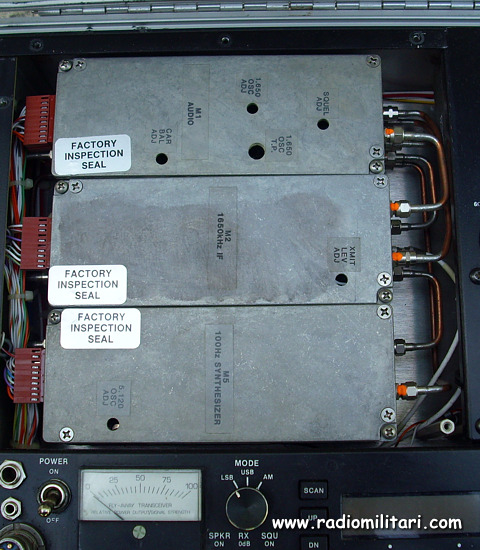

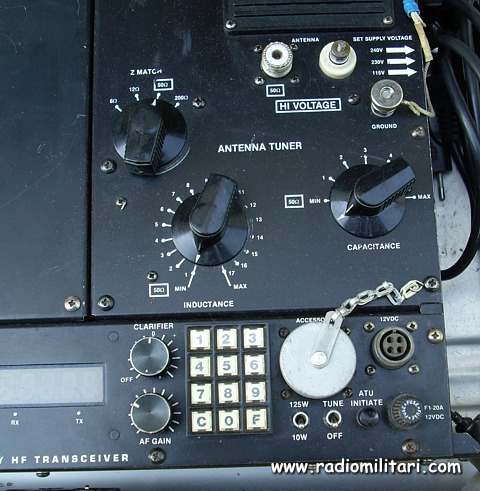

The TW100F transceiver is a solid-state , high-frequency, single-sideband transceiver operating in the frequency range from 1.6-30. MHz. The range is covered in 100Hz steps, and there are no gaps or disallowed frequencies in the coverage. The transceiver will operate on any frequency and will store 100differente frequencies in permanent memory. Scanning is available on ten channels. The transmitter uses a special gain-controlled amplifier to give constant output with different voice level. A front-panel meter is used to measure received signal strength and transmitter power output. The meter is also used as a tuning indicator for the antenna turner. The transceiver has a power output of 125W PEP (100 W AVG) or 10 W for low-power. The transceiver can operate from 105-125 V and 210 –245 V 50/400 Hz or 12 V DC. A built-in antenna turner match the transceiver to a wide variety of whip and wire antennas up 25 m in length.. The transceiver uses an up-conversion system with the first IF at 75 MHz and the main selectivity at 1650 KH. With this system, the main spurious products do not fall within the operating range , which ensures-exceptional freedom from spurious response in both the transmitter and receiver. The transceiver is constructed in a lightweight aluminium case with all of operating controls on the top panel. Most of the circuitry is contained in six diecast boxes with SMA connectors, and the microprocessor and filter modules are mounted under the chassis. The transceiver is mounted on four shock mounts inside the high-quality “Zero” aluminium carrying case.
|
|
||
 |
. |
||
|
|
|||
|
|
|||
|
|
