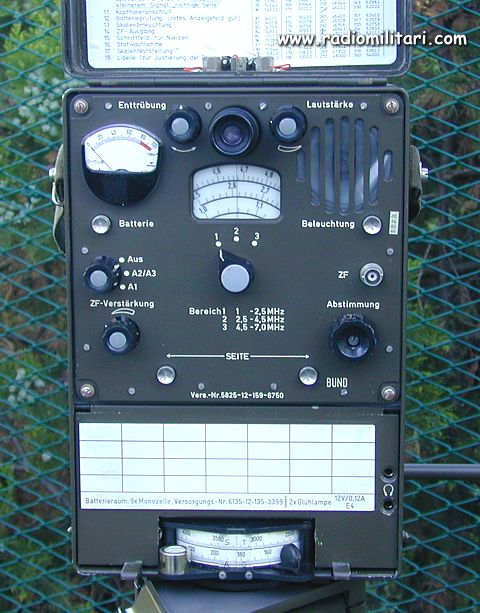

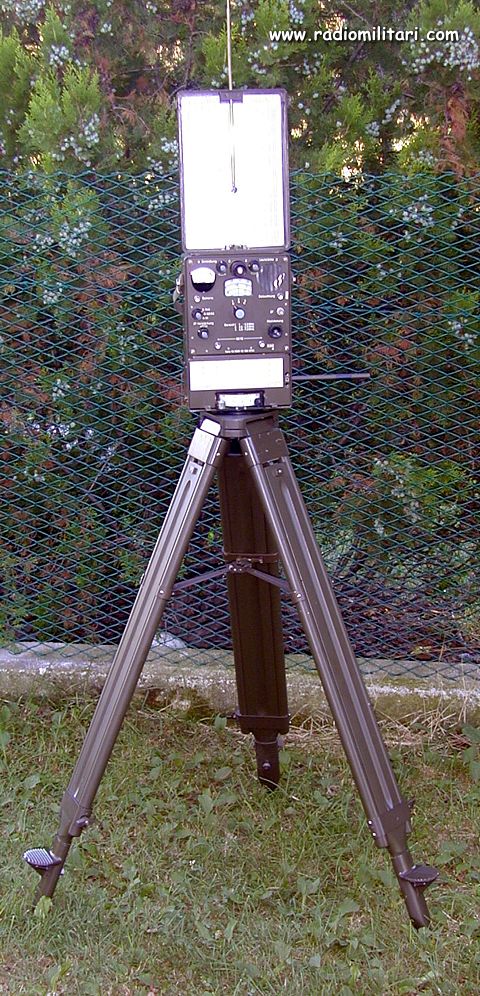

DIRECTION FINDER RECEIVER TVP 405
year 1974

The TVP-405 is a portable HF Direction Finder. All solid state. Fa. C. Plath Hamburg manifacture.







  TVP405

.
Frequency coverage:
rx 1.0 - 7.0 Mhz
Range 1: 1.0 - 2.5 Mhz
Range 2: 2.5 - 45 Mhz
Range 3: 4.5 - 7.0 Mhz
Circuit Features: suprheterodyne
Signals: A1, A2 , A3
IF: 600 Khz
Headset: 2000 ohms
Power Supply: 9 x 1.5 volts stilus battery
Dimension: transmitter 295 x 210 x 125 mm
Weight: 4.8 kg with-out battery 5.7 with battery



TVP 405
