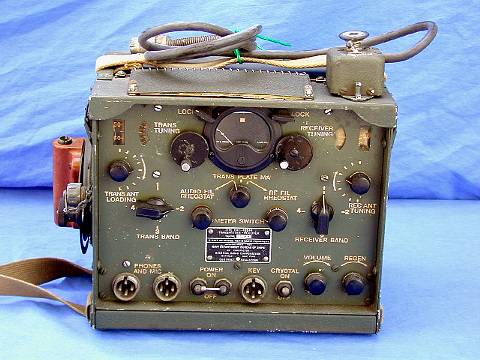

The navy model TBY-8 equipment is a very high frequency transmitter-receiver of the ultra-portable or pack type. The equipment provides 2-way communication by either voice (telephone) or MCW (telegraphy) on any one of 131 different channels in 4 bands with frequency range of 28 to 80 Mc. The equipment is supplied complete, including battery, power supply and antenna and can be set up for operation in a minimum of time. It is designed for carrying as a knapsack load and can be operated by one man while it is mounted on his back.
|
|
|||
 |
||||
| Freq. cov. | 28 to 80 MHz in 4 bands. | |||
| RF Pwr Out | 0.5 W | |||
| RX IF | - | |||
| Pwr Supply | Battery packs navy type CNC-19018B | |||
| Weight | 33.7 lbs with battery | |||
| Tubes | 2x30, 1x1E7G, 3x958A, 1x959 | |||
