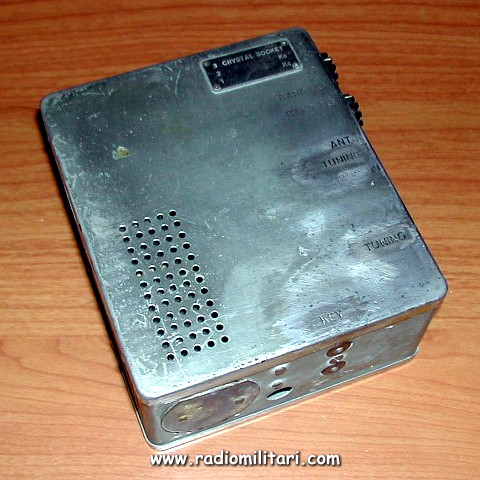

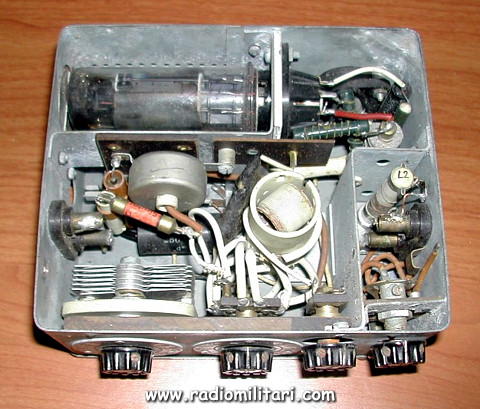

Receiver and Transmitter SE 100/11
Nick name : “ Biscuit Box”
Wurzen manifacture (Nischwitz Casle)
Germany year 1942

The receiver and Transmitter SE 100/11 comprised of three small separate unit. Receiver Transmitter and Power Supply are built in light iron box and interconnected by special sockets and plugs.Used from OKW Amt Ausland / Abwehr for clandestine mission.







  Receiver and Transmitter SE 100/11

.
 Rx Frequency cov.: 4.0 MHz – 7.4 MHz
Tx Frequency cov.: 2.3 MHz – 12 MHz in two ranges
Type of signals: AM – R/T - CW
Power: 11W RF CW only
Tubes Rx: EF12 x 2, EDD11 x1
Tubes Tx: UBL21
Tubes PSU: EZ11, GR150K
Power supply: 110-220VAC with external power supply
Dimensions:
   Rx 6.5 h x 12 l x 14 w cm.
   Tx 6.5 h x 12 l x 14 w cm.
   PSU 6.5 h x 14 l x 14 w cm.
Weight:
   Rx 0.93 Kg
   Tx 0.85 Kg
   PSU 2.15 Kg
Manual:



Receiver and Transmitter SE 100/11
