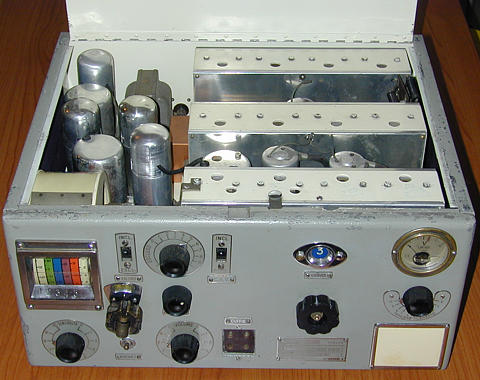

S.A.F.A.R.  Type  850/A   SHORT WAVE RECEIVER
Year  1937  XV

Short Wave radio receiver made from S.A.F.A.R. in Rome and Milan in the 1937. Used in Italian Aircraf  "Regia Aeronautica", or  in Italian Army "Regio Esercito" as base and mobil station. In association of S.A.F.A.R. Type 741/A long wave receiver and S.A.F.A.R. Type RA-310 transmitter formed  one of the must important communications station. Many of this station was mounted  in the "DOVUNQUE" truck, or in special small trail "BIGHE".







.A.F.A.R.  Type  850/A   SHORT WAVE RECEIVER


Freq. Cov.

1.2 -21.0 MHz in 5 ranges

RX IF

600 KHz

Tubes

1x ACH1 (WE22), 1x AF3 (WE33), 3x 78, 1x 75, 1x 77, 1x 41

Power Supply

external power supply 110-230VAC or 12VDC  Output 12V 2A
200-250VDC 50 mA

Dimension

430 x 200 x 400 mm

Weight

18.6Kg  receiver only
