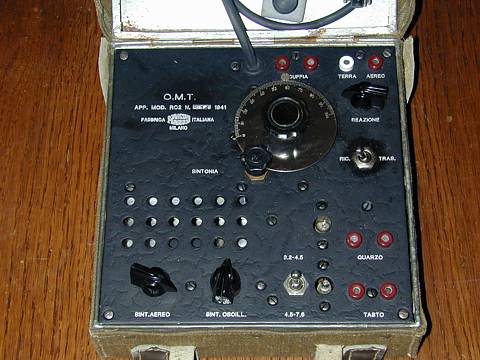

TRANSCEIVER RC2
1941

Italian Intelligence Service, order O.M.T. (Officine Militari Trasmissioni) made by MAGNETI MARELLI - MILAN. Used by agents and military intelligence. PSU is not present in this photo but is contained in another similar box.







  TRANSCEIVER RC2
Freq. cov. 3.2 to 7.6 MHz
Pwr Rf Out. 10 W CW only
Pwr Supply External:
110/120/145/160/
220 VAC
6 VDC
Tubes Rx 2x6RV
Tubes Tx 1x6V6G or GT

Tubes rectif. 1x6X5GT
Weight 2.7 Kg only transceiver
Dimensions 22.5 x 21.5 x 9.5 cm

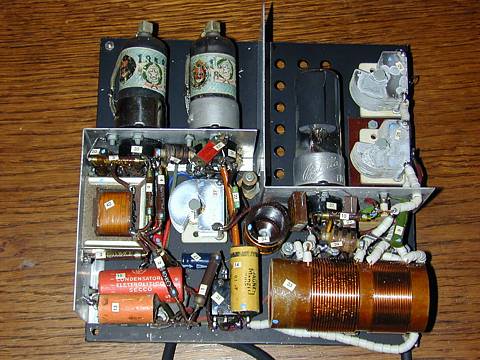

RC2 inside

TRANSCEIVER RC2

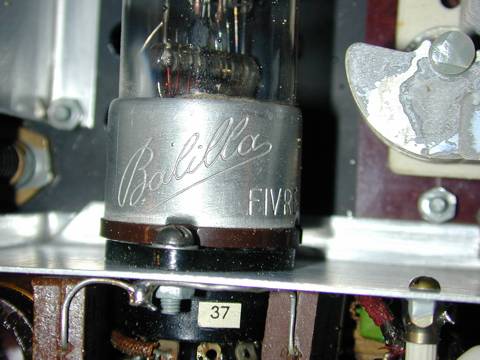

Typical Italian 6V6 "BALILLA" made by Fivre under fascist regime

TRANSCEIVER RC2
