Navy Model RBM
Semi-Portable Radio Receiving Equipment
Year 1942

The Navy Model RBM Series Semi-Portable Radio Receiving Equipments are primary intended for use in portable service. This service is usually involves transportation over and use in rough and wet country. In addition, the equipment are suitable for many varied applications to which radio receiving units may be put by the Naval service. This equipment is particulary intended for use with complete radio transmitting equipment of the portable type. In this type of service, it becomes an integral part of a radio transmitting (normally TBW) and receiving station at an advanced base.







  Navy Model RBM
Freq. cov. 200 - 2000 KHz
in 4 bands
I.F. 140 KHz
Tubes 12H6    x2
12A6    x1
12SJ7   x3
12SG7  x3
12SK7  x2
Pwr supply with external Dynamotor or battery pack;
Low Tension 12 VDC High Tension 190-225 VDC
Size 9 3/4 x 12 7/16 x 17 1/16
Weight 30 lbs

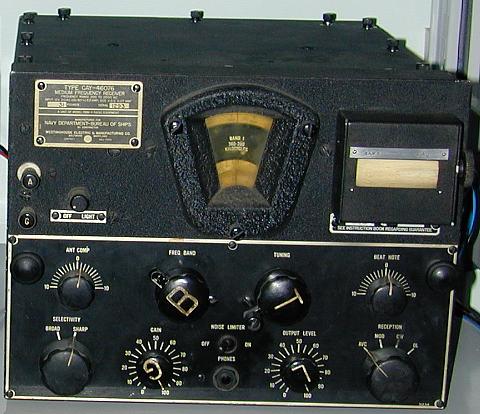

Navy Model RBM

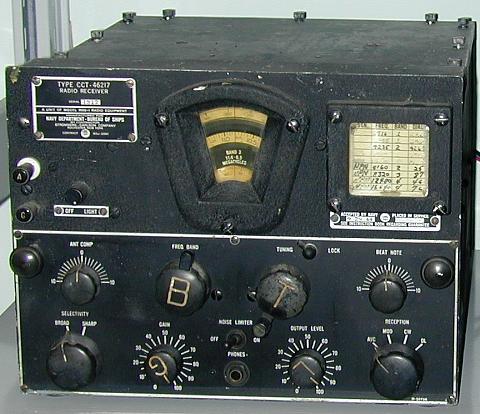

  Navy Model RBM
