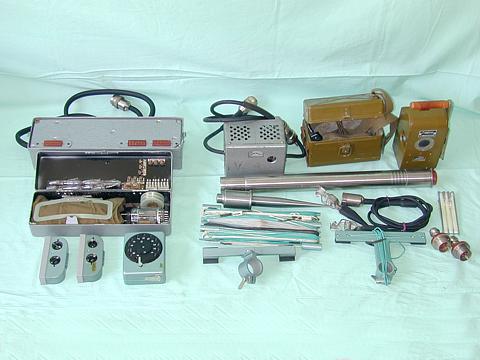

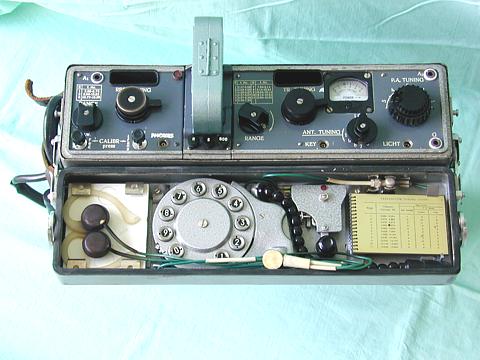

This is a special transportable transceiver for Soviet agents during the cold war. The receiver is double supereterodyne (AM-RT-CW) and the transmitter is VFO controlled. The R-353 uses a high speed morse burst coder up to 500 CPM.
|
|
|||
 |
||||
|
Freq. cov. Pwr out Pwr Supply Hand generat. Tubes Size Weight |
Rx: 2.98 to 16.02 MHz in 3 bands: 2.98 to 5.72 5.68 to 10.83 10.78 to 16.02 Tx: 3.47 to 16 MHZ in 11 bands 10 W Mains: 90 to 240 AC Batteries: 12 VDC with 8 silver / zinc accumulators type SCM-5 PSU-5M Rx: 11x1SH29B Tx: 1x6SH32B 3x1P24B 1xGK19 27 x 9 x 33 cm 13 Kg |
|||
|
|
|||
