Reception Set R-103
Year 1941


Reception Set R-103 is a superheterodyne receiver, designed for use in staff cars for the reception of radio telephone and continuous wave signals.The set covers the frequency range from 1.0 to 16.0 Mc/s in three bands. The set comprises a receiver unit and a separate vibrator HT supply unit, both housed in steel case. Master Radio Ltd was the manufactured of Reception Set R-103.

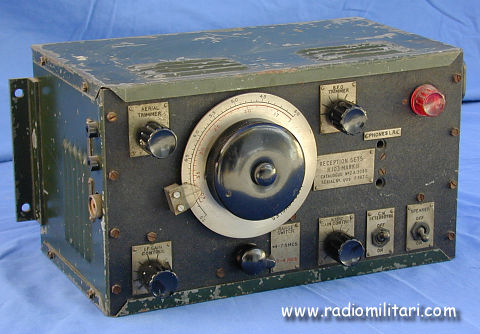

  Reception Set R-103

.
Frequency coverage: 1.7 – 7.5 Mc/s in 2 bands
IF: 465 kc
Mode: AM R/T and CW
Tubes:
1 x ARP36 (VR65)
1 x ARTH1 (6K8G)
4 x ARP31 (6B8G)
1 x ARP32 (6V6G)
1 x AU9 (OZ4)
External Power Supply: 12V 4,5A Dimensions Rx: 7 x 7 x 12 inch.
Weight Rx: 20 lb
Dimension PSU: 6 1/2 x 9 1/2 x 11 inch.
Weight PSU: 14 1/2 lb
