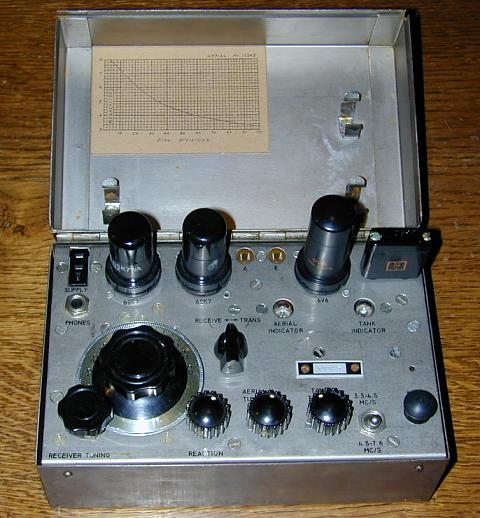

The Mk.VII, also known as "Paraset", is a self contained miniature transceiver designed from SIS Section VII. Used from M16, SIS and SOE. Many of these transceiver supplied supplied during the WW2 to the Resistence forces mainly in France, Belgium and Netherland.
|
|
|||
 |
||||
|
Frequency and coverage: |
Rx: 3.0 - 7.6 Mhz Tx: 3.3 - 7.6 Mhz in 2 bands Range 1: 3.3 - 4.5 Mhz Range 2: 4.5 -7.6 Mhz |
|||
| Circuit Features: | regenerative detector, AF (AM R/T and CW) | |||
| Power Output: | 4 - 5 watts RF (cw only) | |||
| Tubes: |
rx: 2 x 6SK7 tx: 1 x 6V6 |
|||
| Power Supply: | AC main unit 110 - 250V, 40-60 Hz, 1 x 6X5GT rectifier. 6 volts DC vibrator unit. | |||
| Dimension: |
transmitter - receiver 11 x 14 x 22.5 |
|||
| Weight: | 2.3 lbs | |||
