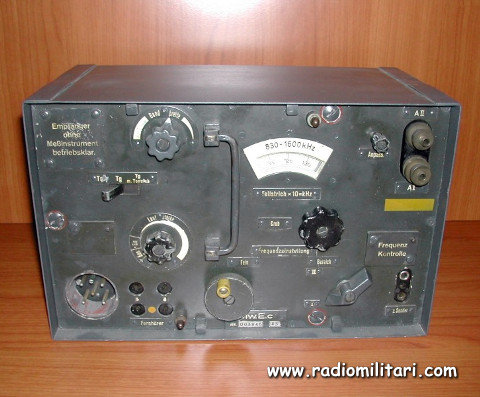

Radio Receiver Mw.E.c Stassfurter
Year 1936

The radio receiver Mw.E.c is a superheterodyne  Medium Wave radio used in many vheicles. Sd.Skf.250/6, Sd.Kfz.251/3, Sd.Skf.251/10. Can be used with the 30W.S.a and 80W.S.a Transmitters. Yellow marked equipment = “Gelbstrich”-Gerate: intended for intercom modification.








  Radio Receiver Mw.E.c Stassfurter

.
Frequency Coverage:
     830 – 3.000 KHz in two bands
     830 – 1.600 KHz
     1.600 – 3.000 KHz
IF: 352 KHz

Signals: AM voice - cw
Tubes: 9 x RV12P2000
Dimensions: 20Height x 17Depth x 31.5Width cm.
Weight: 10.8 Kg
Power supply: Dynamotor 12V E.U.a, E.U.a1-2-3-4
Manual: D 968/2
