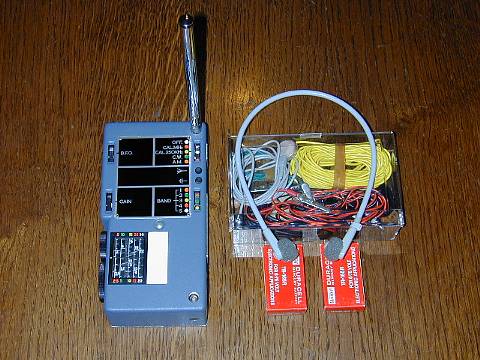

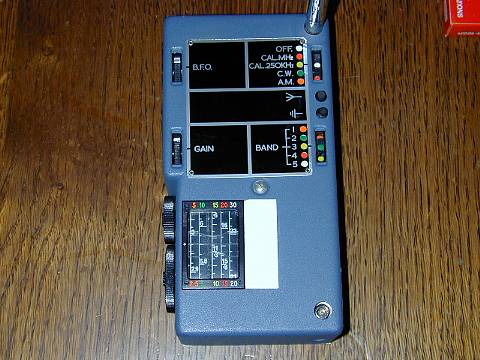

MK-328 Receiver

The MK-328 is a general purpose transistor receiver covering the frequency range 2.5 - 30 MHz in 5 bands, and is designed to operate either from its own internal batteries or from any external 10.5 - 16 VDC supply. The receiver is a BFO for cw traffic which may be switched off to receive AM signals. A built-in crystal controlled calibrator provides a reference signal at each 250 KHz throughout the 5 bands. The dial is a 35 mm steel strip 300 mm long and there is a movable cursor for use with the crystal calibrator. A coaxial outlet at higher impedance is provided for connecting a tape recorder.







  MK-328 Receiver
Freq. cov.
RX IF
AF freq.
AF out. level
Aerial

BFO
Earphone imp.
Recorder imp.
Pwr Supply

Weight
Dimensions

2.5 to 30 MHz
450 KHz
300 HZ to 2 KHz
1 mW
Telescopic or short wire
+/- 2.5 KHz
2  K
22 K
2 mercury cells 6.75 V
or external 10.5-16 V
1.08 Kg
175x89x50 mm
