MASON  Mod. A2
Spy Radio Receiver  with Spectrum Analyzer
Year  1965
Manufacturer MASON ENGR. CONN. USA

I m interest to find the manual.

The Mason Engineering A-2 Receiver System was designed primarily to answer the need for a truly portable, wide range, communications receive.
Because it consist of a basic unit wit small plug-in tuning modules, many special types of tuning heads can be designed, such as wide range tuning, crystal- controlled fixed frequency, or crystal-controlled discreet channels.
Also any type of power supply battery, AC/DC converter, or DC/DC inverter, can be used and can be easily changed in the field. It s light weight and small size make it ideal for use in remote areas, aircraft, vehicles, and ships.
Many special features were incorporated without increasing the size or weight to unreasonable proportions.
The unit was engineered with versatility being one of the prime objects thus allowing many users to benefit. The MODEL S-1 attachment to the A-2 RECEIVER provides a swept visual display of the signal received, in a small battery operated package.
Lightweight headset are supplied for normal listening to AM, FM, and CW signals. A signal strength meter is included for visual indication of relative strength of the signals being monitored.
A unique visual monitor aids greatly in signal searching applications.
The tuned frequency and adjacent spectra are scanned and presented on the display tube.
Signals thus monitored can be analyzed for relative signal strength, type of modulation, and other technical information.
Each turner unit has a direct frequency-reading tape dial.
The dial are individually calibrated.
A total of eleven turner units cover a frequency range from 2-kc to 1200-mc.
Each turner unit has its own tuning element, specialized circuitry, and calibrated dial.
This permit maximum sensitivity and selectivity without compromise.
Having separate tuning, control, power and output units allows for simple, in- the-field changes for repair, special setups and future replacement or additional units. As an added feature, antennas are interchangeable and can be plugged into the turner receptacle.

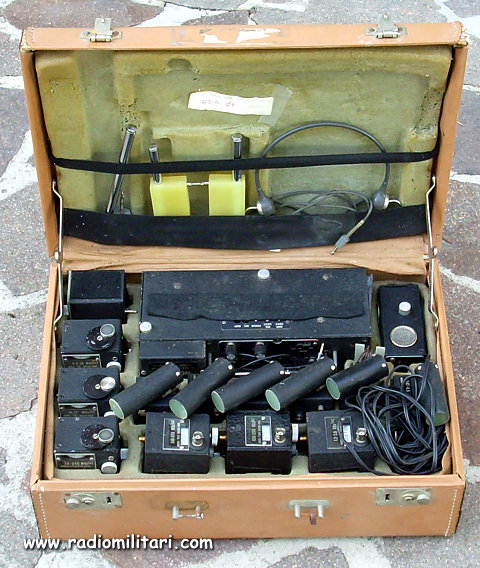

  Mason spy radio receiver

.
The A2 system consists of the following modules:

Rceiver Model A2

Visual Display Unit Model S1

Rechargeable Battery Pack Model BP3

AC Power Supply Model PS2 95-128-170-250 VAC

3 Antenna
s

12 Tuning Modules:

  TLF-1 2-9 KHz
   TLF-2 9-43 KHz
   TLF-3 43-130 KHz
   TLF-4 130-475 KHz
   TLF-5 475-1475 KHz
   TLF-6 1.47-4.5 MHz
   T-18 4.5 – 18 MHz
   T-75 18 -75 MHz
   T-340 75 – 340 MHz
   T-650 340 – 650 MHz
   T-1200 650 – 1.200 MHz
   T-2000 1200 – 2.000 MHz :

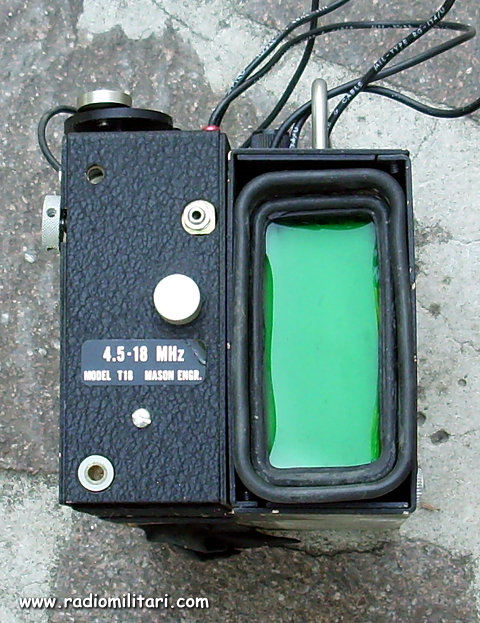

Mason spy radio receiver

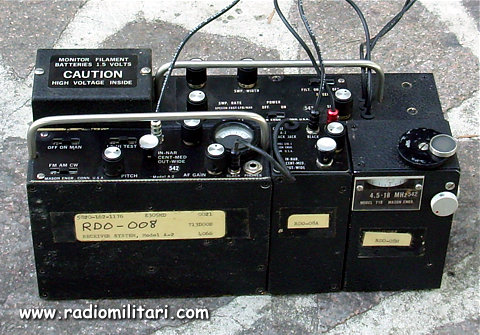

Mason spy radio receiver
