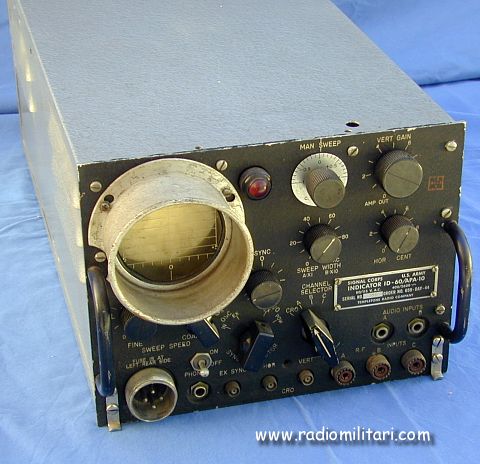

INDICATOR ID-60/APA-10
 year 1944 USA

Panoramic Adapter is an equipment which is used with certain receivers to picture on the screen of a chatode tube aportion of the radio spectrum. The panoramic input of the adapter is taken from the i-f section of the associated receiver.An oscillator within the adapter beats against this input frequency and another intermediate frequency is produced: this is the i-f frequency of the adapter and is 3.9 megacycles for A,B and C channels.The oscillator within the adapter is modulated.







  INDICATOR ID-60/APA-10

.
Power Requirement: 105-125 VAC 400-2.600 cycles or 75-85 VAC (by changing transformer tap. Power input approximately 140 watt
Sensitivity: A channel 400 microvolts or less per 1/4" beam deflection. B channel 400 microvolts or lees per 1/4" beam deflection. C channel 1 volt or lees per 1/4" beam deflection.
Resolution: 12 kilocycles at 3 db down from peaks, sweep control at maximum using CW signal
Presentation:
Panoramic A and B channels Oscillographic C channel
Sweep Width:
Channel A +/- 50 kilocycles (100 kilocycles overall) Channel B +/- 500 kilocycles (1 megacycles overall) Channel C +/- 1 megacycle (2 magacycles overall manually)
Chatode Ray Sweep: Oscillator or non oscillator (servo). Variable sawtooth generator, 35 to 40.000 cycles for second.
Audio Output:
50 milliwatts in to 600 - 8.00 ohm load
Vertical Amplifier: Single stage, +/- 2 db from 30 cycles to 100 kilocycles or higher. Amplifier out position permits direct connection to one vertical plate trought coupling capacitor.
Horizontal Amplifier: Single stage, +/- 2 db from 30 cycles to 100 kilocycles. No provision for direct connection to deflection plate.
Chatode Ray Tube Voltage: Chatode to accelerating anode 1.200 VDC 115VAC input
Sensitivity of Chatode Ray Oscillocope: Horizontal - 10 volts peak to peak per inch Vertical - 1.5 volts peak to peak per inch
Direct to Vertical Plate: 150 volts peak to peak per inch
Noise: No disturbance in excess of 25.000 microvolts between 200 kilocycles to 200 megacycles generated by equipment
Dimensions: 8 x 10 716 x 24 7/8 inch
Weight: 95 pounds
