BC-224-A radio receiver

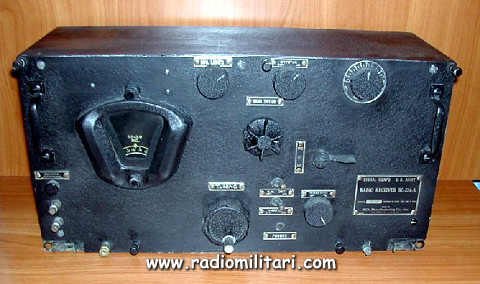

	Radio Receiver BC-224-A Year 1936 RCA Radio Receiver BC-224-A is a locally controlled, 8 tubes, six band supereheterodyne Receiver for U.S. Army aircracft and cover the frequency 1.5 to 18 magacycles. The receiver is not intended for remote control and no featured or units have been provided for remote operation. This receiver is capable of voice, tone and CW reception with manual or automatic volume control. The Radio Receiver BC-224-A use the Mounting FT-154 with plug PL-P103 or PL-Q103.
			. Frequency: 1.5 – 18 MHz in 6 Bands I F : 915 Kc Type of signals: Voice – Tone - C.W. Tubes: 1 x VT-48, 1 x VT-68, 4 x VT-69, 1 x VT-70, 1 x VT-76 Power supply: 14 VDC with dynamotor BD-94-A Dimensions: 18 x 6 - ½ x 10 - 1/16 inc. Weight: 42 Lbs. Manual: No. 08-10-24
