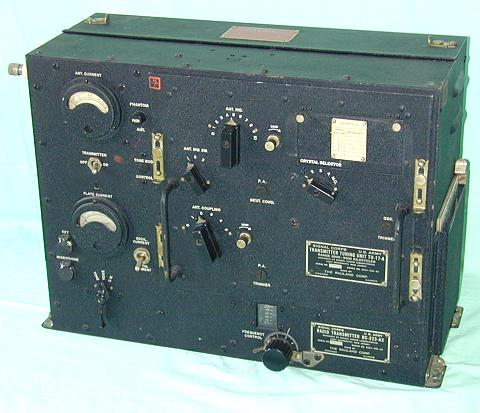

The Bc-223Ax was used on the Radio Set SCR-245-GX JX MX NX PX designed primarily for installation in vehicles for the purpose of obtaining intervehicular communication whether the wehicles are stationary or moving. The SCR-245 use the Radio Receiver BC-312Ax.
|
|
|||
![]() |
||||
Freq. cov. |
2 - 5.25 MHz with 3 tunig unit: TU-17A 2 to 3 MHz TU-18A 3 to 4.5 MHz TU-25A 3.5 to 5.25 MHz |
|||
RF Out Pwr | 10 W | |||
Mode | Cw tone Voice | |||
Tubes |
2 x VT62 (801A) 3 x VT46 (46) |
|||
Size |
14 1/2 x 20 1/2 x 8 3/4 inches |
|||
Weight | 26.5 pounds | |||

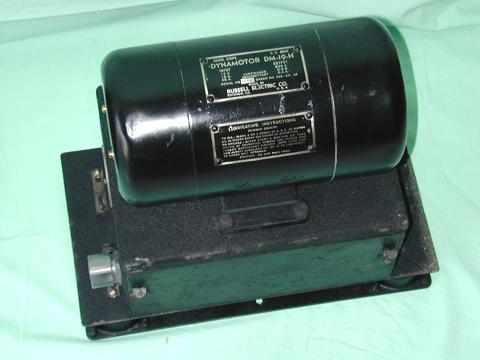

Pwr supply | 12 or 24 VDC with external dynamotor | |||
|
