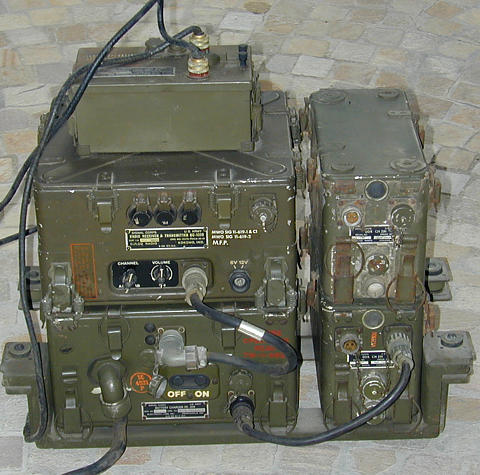

Radio Set SCR-619 BC-1335 is a combined radio transmitter and radio receiver with facilities for providing short-range voice communication between similar sets operating in the same frequency range. The set is designed for pack operation and it has an average distance range of 5 miles. The range will vary with the antenna height, frequency, time of the day, power output, type of antenna, terrain, condition of batteries and other operating conditions.
|
|
|||
 |
||||
| Freq. cov. | 27.0 - 38.9 MHz using 120 channels (crystal) | |||
| I.F. | 4.3 MHz | |||
| Mode | FM voice | |||
| Tubes |
1L4 x7 1R5 x2 3Q4 x1 3A5 x1 6AF6 x1 |
|||
| Output Pwr | 2-4 W | |||
| Pwr supply | 6 or 12 VDC | |||
| Size | 6 31/32 x 12 1/4 x 13 9/32 on BC-1335 | |||
| Weight | 22.75 lbs only BC-1335 | |||
|
|
||||
