Radio Set B. 30 mT.
Manifactured by Unda Radio Como or Allocchio Bacchini Milano Year 1941
 Used in the famous fighter Macchi C 200 and C 205 V

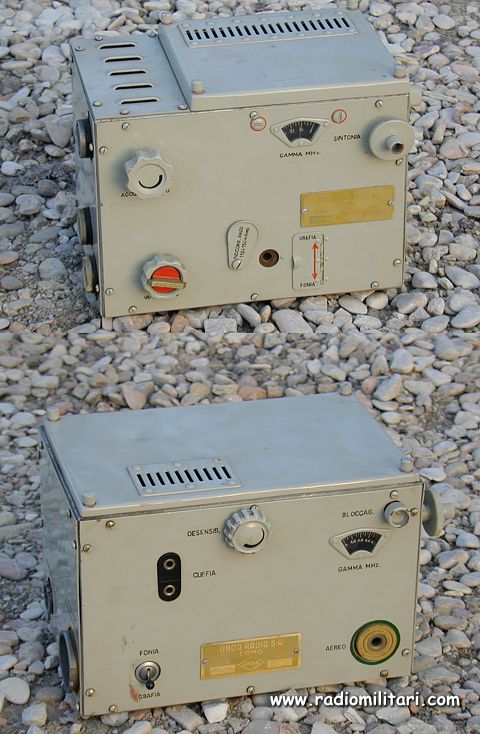

The radio set B.30 mT.is an Radio receiver and transmitter used in aircraft for communicate in telephony or in telegraphy in the frequency range of 3.0 – 5.0 Mhz ( 60 – 100 m.). The radio station is composed from five pieces:

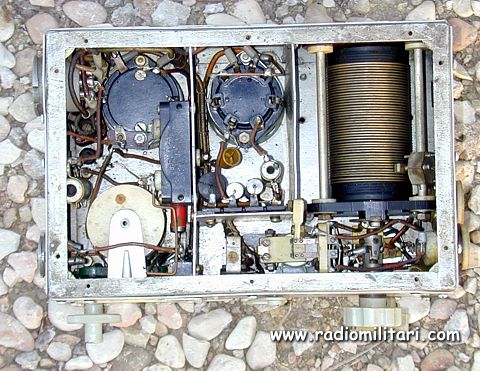

   1- transmitter and ammeter
   2- Modulator

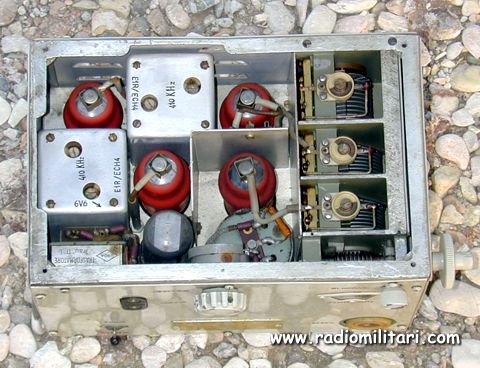

   3- Receiver
   4- Dynamotor
   5- Control box


.
Frequency coverage: 3.0 – 5.0 MHz
I.F. : 460 Khz
Type of signals: voice – cw
Power: 30 W
Tubes Rx: 4 x E1R, 1 x EL2
Tubes Tx: 1 x 6T, 1 x PE 06/40
Tubes Mod.: 1 x E1R, 1 x EL2, 2 x
PE 0/40
Power Supply: Dynamotor 12 or 24 v
Rx Dimension: 200 x 200 x 185 mm
Tx Dimension: 268 x 212 x 185 mm
Md Dimension: 253 x 212 x 120 mm
PSU Dimension: 370 x 260 x 176 mm
Rx Weight: 4 kg
Tx Weight: 4.5 kg
Md Weight: 5.3 kg
PSU Weight: 14.5 kg
Manual: U.T.30 Regia Aeronautica
