Type 3 Mk.II  (Type B Mk.II)
Year 1942

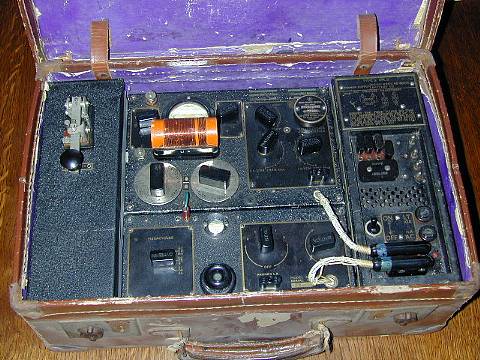

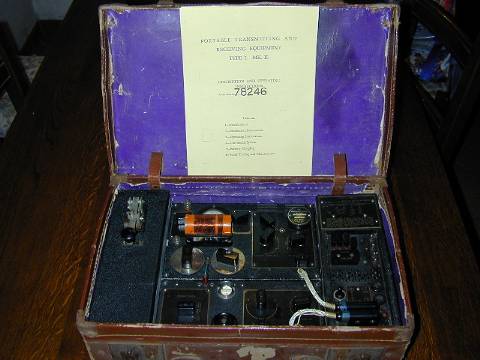

Type 3 MK.II (also known as “ Type B Mk.II) is a portable transmitter and receiver used from SOE, resistance organisations and special forces. The set is comprised of a separate receiver, transmitter and power pack. Ancillaries, spare valves and fuses are packed in a spare box. Although normally carried in a suitcase, it was later found that watertight container packing was more suitable, especially when used by resistance groups operating in the field. The radio set were intended for ranges over 800km. and was one of the most successful clandestine sets, reliable and higly powered, but having the disadvantage that it was rather heavy and bulky.

Rx  Freq. Coverage: 3.1-15.2 MHz in 3 ranges, Range 1: 8.7-15.2 MHz,  Range 2: 5.2-9.0 MHz, Range 3: 3.1-5.4 MHz.
Mode: AM R/T and CW
IF: 470KHz
Valves: 2 x 7Q7 , 2 x 7R7
Dim. and weight: 12.3 x 24 x 11.5 cm 2.3Kg
Tx  Freq. Coverage: 3-16 MHz in 4
ranges, Tank Coil 1: 3-5.5 MHz, Tank Coil 2: 4.5-7.5 MHz, Tank Coil 3: 6.5-10 MHz, Tank Coil 4: 9-16 MHz
Power Output: 20W
Valves: EL32, 6L6
Dim. and weight: 12.3 x 24 x 16 cm 2.8Kg
Power Pack: AC mains: 97-140 and 190-250V 40-60Hz, DC mains : 6V battery 4.5A rx 9.5A tx
Dim. and weight: 13 x 27 x 10 cm 4.6Kg
Spare Box:
Dim. and weight: 13 x 27 8.5 cm 1.6Kg
